내화성 암면 단열 벽체 패널

패널 구조

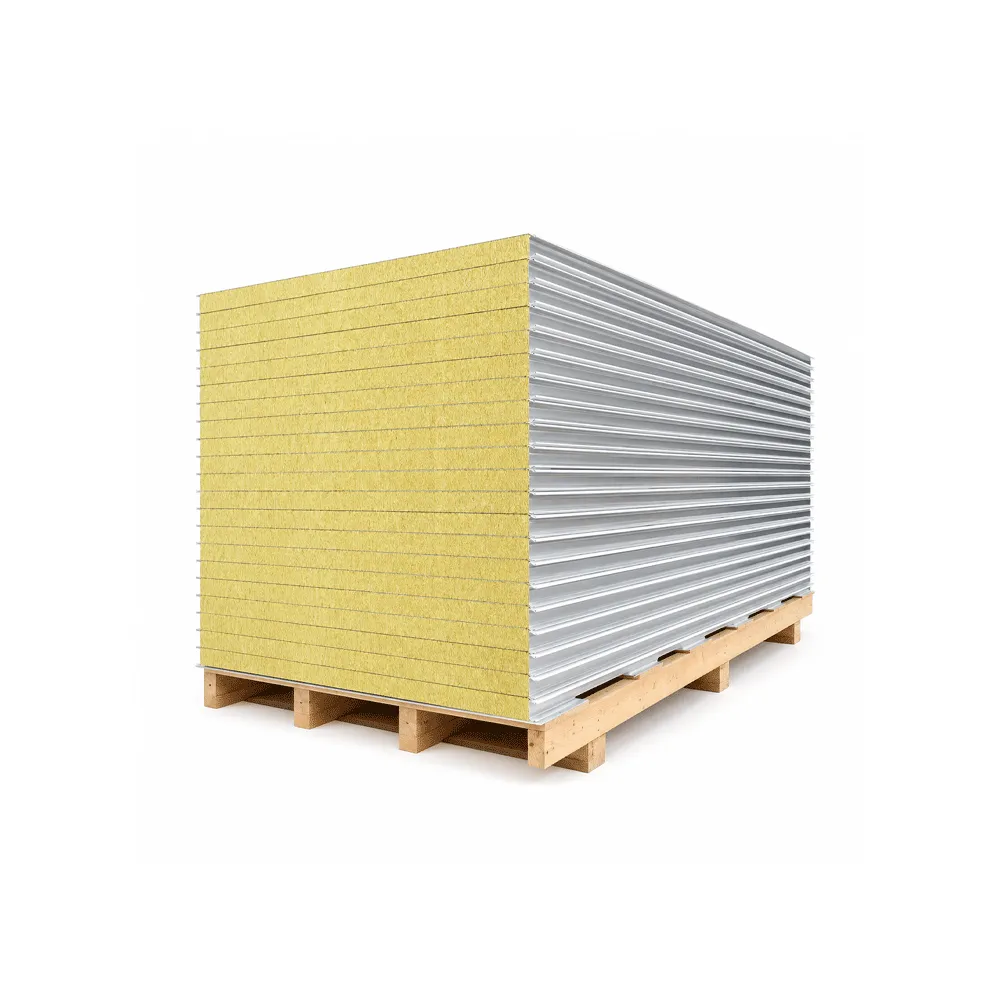

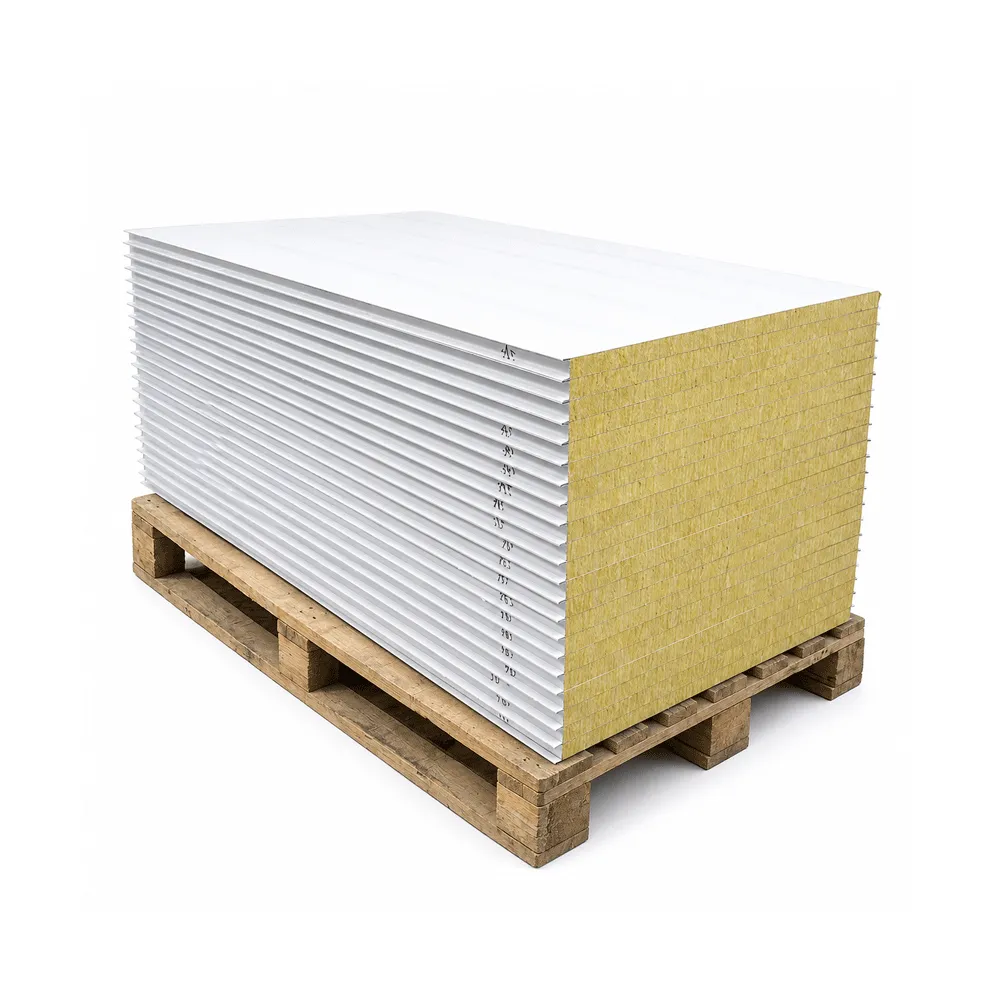

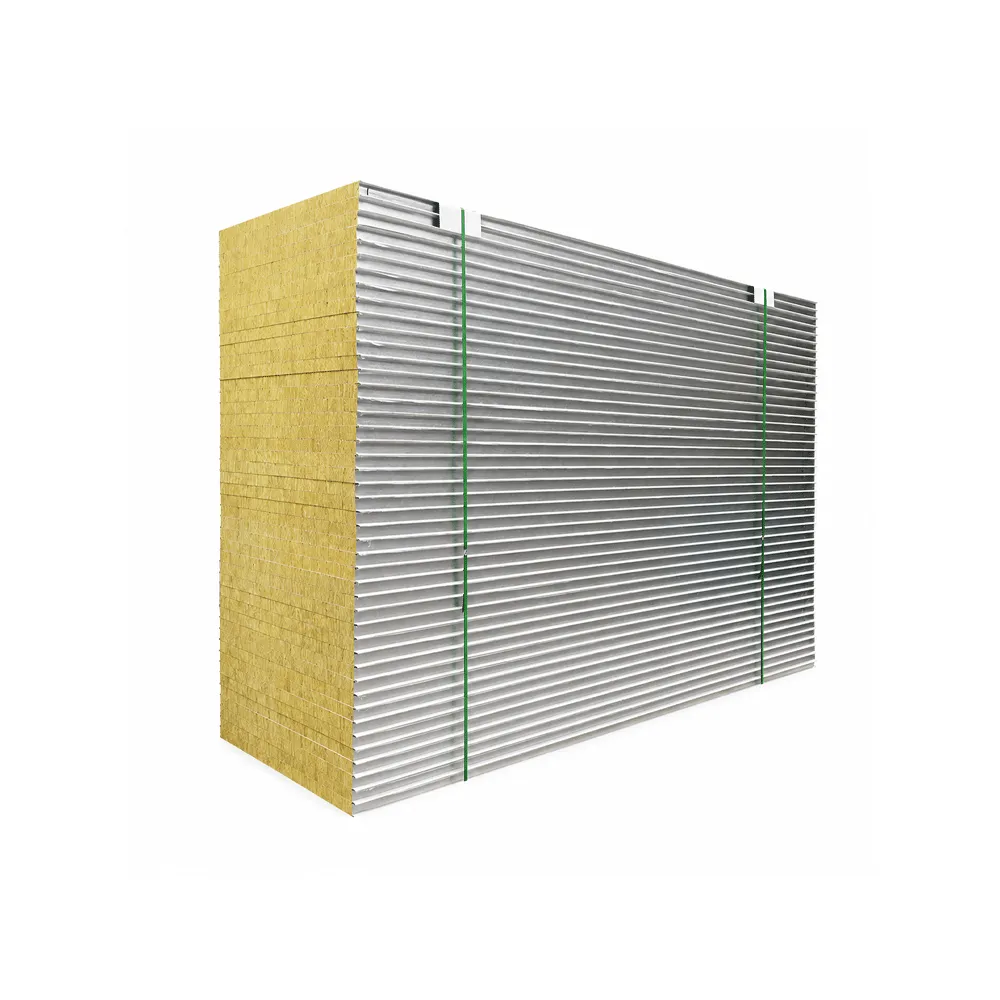

The Fuqiang fire-resistant rock wool insulated wall board is a three-layer composite sandwich panel. The outer face consists of a profiled galvanized steel sheet with a weather-resistant color coating. The structural core is a continuous layer of high-density rock wool insulation. The inner liner is a flat or lightly profiled steel sheet. The three layers are bonded together to form a rigid, self-supporting panel that can be installed directly onto steel purlins or wall framing without additional internal lining.

표면 소재 및 코팅
The outer and inner steel facings are manufactured from galvanized or aluminum-zinc coated structural steel. The surface is finished with a factory-applied color coating that provides resistance to corrosion, UV exposure, humidity, and light chemical contact under normal building exposure conditions. The coating system helps maintain panel appearance over the service life of the building and reduces the need for on-site painting or surface preparation. A range of standard colors is available, and custom color matching can be arranged based on project specifications or RAL references.

암면 코어 성능
The insulation core of this panel is composed of high-density rock wool, a mineral fiber material derived from volcanic basalt. Rock wool is classified as an A-Grade non-combustible material and has a documented melting point above 1,000°C, making it suitable for projects where fire containment and flame spread limitation are specified requirements. The rock wool core provides a low thermal conductivity value of 0.043 W/(m·k), contributing to effective thermal insulation across the wall assembly. The core also provides sound insulation performance of ≥30 dB, reducing the transmission of external noise into occupied building spaces.

접합부 및 가장자리 밀봉 시스템
패널 시스템은 각 패널의 긴 가장자리를 따라 암수 맞물림 방식의 인터로킹 조인트 프로파일을 적용합니다. 조인트 접합부는 연결 영역을 채우고 패널 조인트에서 물 침투, 공기 누출 및 열교 현상을 방지하는 데 도움이 되는 폴리우레탄 가장자리 실링 컴파운드로 밀봉됩니다. 이러한 밀봉 조인트 설계는 벽체 구성의 전반적인 기밀성에 기여하며, 여러 패널을 설치할 때 일관된 열적 외피를 유지하도록 지원합니다. 또한 조인트 시스템은 설치 중 패널 정렬을 돕기 때문에 넓은 면적의 벽체 시공에 필요한 숙련도를 낮출 수 있습니다.

사용 가능한 치수 및 맞춤 설정
표준 유효 패널 폭은 950mm입니다. 사용 가능한 패널 두께는 50mm에서 200mm까지이며, 설계자는 열 요구 사항, 내화 등급 목표 또는 음향 성능 기준에 따라 적절한 단열 깊이를 선택할 수 있습니다. 특정 구조 베이 또는 프로젝트의 바닥에서 지붕까지의 치수에 맞춰 맞춤형 패널 길이를 제작할 수 있어 현장 절단으로 인한 자재 낭비를 줄일 수 있습니다. 코어 두께, 표면 프로파일, 코팅 색상 및 패널 길이는 모두 맞춤 설정 가능한 매개변수입니다. 자격을 갖춘 유통업체 및 지역 구매자를 대상으로 OEM 및 자체 브랜드 생산도 진행할 수 있습니다.

설치 호환성
The panel fixing system uses concealed or exposed structural fasteners depending on the wall frame configuration. Panels are designed for installation onto standard steel purlin or cold-formed framing systems. Fuqiang supplies a complete range of matching installation accessories, including external and internal corner trims, window and door frame trims, base trims, ridge and eave flashings, closure pieces, and sealing strips. Sourcing the panel system and accessories from a single supplier simplifies procurement coordination and helps ensure dimensional compatibility on site.

Project and Climate Suitability
This fire-resistant rock wool wall panel is suitable for wall cladding applications in industrial facilities, steel-structure workshops, logistics warehouses, cold-chain distribution centers, commercial buildings, prefabricated plants, and modular construction systems. The panel is also applicable to building renovation projects where existing wall surfaces require upgraded insulation, fire performance improvement, or a refreshed exterior appearance. The sealed joint system and corrosion-resistant coating make the panel suitable for deployment in moderate to demanding climate conditions, including humid, coastal-adjacent, and high-UV environments where surface durability is a practical project concern.
