October 21, 2026 Traditional brick, stone, and wood finishes can give a building a strong visual identity, but they may also involve heavy materials, multiple construction steps, and regular maintenance. For renovation and new-build projects, 500mm metal carved panels offer another approach: a factory-finished wall system that combines decorative texture, lightweight construction, and optional insulation.
500mm metal carved panels are decorative wall panels with a 500mm effective width, designed to create brick, stone, wood-grain, and other textured finishes. Depending on the product configuration, they can combine a coated metal facing with a polyurethane insulation core for exterior wall decoration, renovation, modular buildings, villas, hotels, and low-rise construction.
500mm Metal Carved Panels: Exterior Wall Decoration, Insulation and Design Guide
A metal carved panel is a decorative building board manufactured with a formed or embossed metal surface. Instead of leaving the metal flat, the manufacturing process creates patterns that reproduce the visual character of brick, stone, wood, bark, or other architectural finishes.
The 500mm format refers to the panel’s effective coverage width. In Fuqiang’s current product specification, the panel is available in 500mm width with thickness options of 16mm, 20mm, 25mm, and 30mm. The product uses an embossed steel or aluminum facing, a rigid polyurethane core, and a protective backing layer.
This structure makes the product different from a simple decorative metal sheet. A conventional sheet may provid appearance only, while an integrated wall panel can also contribute to insulation and building-envelope performance.
For contractors and developers, this distinction matters. The product should be selected according to whether the project needs decorative cladding, thermal insulation, or both.
Panel width directly affects the layout of a large exterior wall.
A wider panel can cover more surface with each piece and may reduce the number of visible joints, depending on the wall dimensions and installation layout. Fuqiang’s current 500mm project information compares the format with a 383mm panel and calculates approximately 30.5% greater coverage width under the same conditions. Actual material quantities still depend on openings, orientation, cutting, and wall dimensions.
For a large façade, fewer joints can create a more continuous visual appearance. This is especially useful when the panel has a wood-grain or brick pattern and the designer wants the texture to remain visually consistent.
The 500mm format can also simplify material planning for contractors. Instead of selecting many narrow sections, the installation team can work with a wider standardized module.
The best panel width should still be determined from the actual elevation drawings rather than from width alone.
One of the main advantages of an insulated sandwich panel is that different functions can be combined into one product.

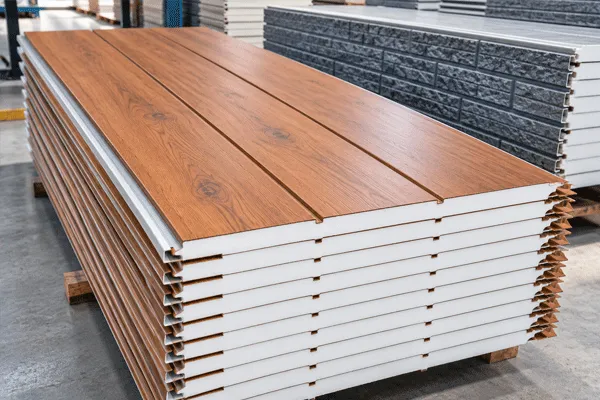

For Fuqiang’s brick and stone pattern system, the current product structure consists of an embossed metal facing, a rigid polyurethane insulation core, and a fiber aluminum foil cloth backing. The PU core is specified at 40 kg/m³, while the panel thickness can be selected according to the application.
This means the panel can provide a decorative surface while also contributing to thermal insulation.
For a renovation project, a relatively thin panel can be used where the main objective is to refresh an existing wall. For a new building, the project team can select a configuration according to the required insulation level and wall assembly.
The important point is that insulation performance is not determined by the decorative pattern itself. It depends on the complete panel construction, thickness, joints, substrate, and installation.
The visual appearance is one of the strongest reasons to select a carved panel.
Instead of using conventional masonry, architects can select a surface designed to resemble different materials. Current Fuqiang product information lists brick, long stone, folding stone, mudflat, and bark textures, with several color options available depending on the selected mold and production configuration.
| Finish | Visual Character | Typical Application |
|---|---|---|
| Grey brick | Structured and modern | Commercial buildings, villas |
| Wood grain | Warm and natural | Houses, villas, hotels |
| Stone | Solid and premium | Façades, entrances |
| Bark texture | Natural and distinctive | Residential architecture |
| Marble effect | Refined appearance | Commercial and hospitality projects |
| Solid color | Simple and modern | Contemporary façades |
A combination of two finishes can also create a stronger architectural effect.
For example, a project may use a wood-grain wall panel across the main wall and a grey brick texture around the lower section. This approach has already been demonstrated in Fuqiang’s completed 500mm project, where Antique Grey Brick and Yellow Chicken-Wing Wood Grain were combined on one building wall.
Yes, provided that the selected product configuration and installation system are suitable for the specific building.
Exterior applications expose the metal carved panel to sunlight, rain, wind, temperature changes, and other environmental conditions. Therefore, the facing material, coating, fixing method, joints, and supporting wall all need to be considered.
Fuqiang’s current exterior decorative panel range is intended for villas, commercial façades, modular buildings, warehouses, and renovation projects. The company recommends reviewing substrate condition, building height, wind exposure, fire requirements, coating environment, and fixing method before specifying the panel.
For outdoor projects, surface protection is particularly important. Fuqiang’s brick and stone panel uses a weather-resistant fluorocarbon baking paint on the decorative facing. The coating is intended to help protect the appearance during outdoor exposure.
The correct specification should therefore consider the local climate rather than treating every exterior wall as the same application.

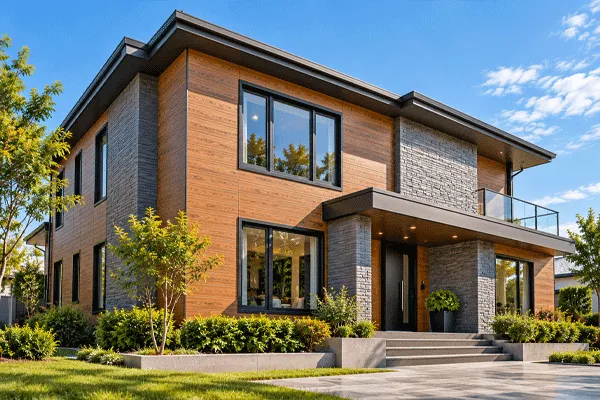

500mm metal carved panels are well suited to residential projects where appearance and practical construction both matter.
A villa façade often needs more visual detail than a warehouse wall. Wood, stone, and brick patterns can create a residential appearance while avoiding the weight and installation process associated with traditional masonry.
Fuqiang has supplied decorative metal wall panels for a villa exterior project in Kyrgyzstan. The project used a wood-grain finish to create a natural appearance while providing weather-resistant and low-maintenance exterior decoration.
For villa projects, designers can use different textures in specific façade zones:
This allows the exterior wall decoration to follow the architectural design rather than covering every surface with the same pattern.
A restrained combination usually works best. One primary texture plus one complementary finish can provide enough contrast without making the building look visually crowded.
Renovation projects often have an existing wall structure, windows, doors, corners, and irregular sections. The challenge is to improve the appearance without creating a complicated construction process.
A decorative wall panel can provide a new finished surface over a suitable existing substrate. Because the panel is factory-finished, the project can reduce the need for on-site wet trades such as masonry, rendering, and painting.
Fuqiang’s current brick and stone panel is designed for renovation, modular structures, and low-rise buildings. The manufacturer states that the panel can be fixed to brick, concrete, frame, steel-structure, and light-gauge substrates depending on project conditions.
The installation should still be designed around the existing building.
Before ordering, contractors should check:
A good renovation design starts with the existing building rather than forcing a standard panel layout onto it.
The two products can look similar but perform differently.
A simple decorative metal panel mainly provides a finished appearance. If the building requires thermal insulation, another insulation layer may need to be installed behind it.
An insulated panel combines the decorative facing and insulation into one component.
| Feature | Decorative Metal Panel | Insulated Metal Panel |
|---|---|---|
| Decorative surface | Yes | Yes |
| Insulation core | Not always | Yes |
| Thermal insulation | Depends on wall assembly | Integrated |
| Installation | Cladding installation | Panel-system installation |
| Typical use | Façade decoration | Decoration + insulation |
| Renovation | Suitable | Suitable |
| New construction | Suitable | Suitable |
Fuqiang’s current product range includes both decorative metal wall panels and insulated PU sandwich panel systems, allowing project teams to select the construction according to the required performance.
This is why buyers should not ask only, “What does the panel look like?”
They should also ask:
What role does the panel need to perform in the building envelope?
500mm Metal Carved Panels: Exterior Wall Decoration, Insulation and Design Guide
A high-quality decorative surface can lose its visual effect if the joints and edge details are poorly planned.
For brick and stone patterns, Fuqiang’s current 500mm panel uses an interlocking profile with concealed fixing. The adjoining panel covers the fixing area, helping keep screw heads from interrupting the decorative pattern.
This is especially useful when the wall uses a continuous brick pattern. Visible fasteners can interrupt the courses and make the façade look less natural.
The accessory package is also important.
Typical components include:
Fuqiang manufactures matching panel trims and accessories, with profiles available according to drawings, samples, panel dimensions, coating, color, and other project requirements.
For large projects, purchasing panels and matching accessories as one coordinated package can make installation planning easier.
The right building material should be selected from the project’s actual requirements.
Is the panel being used for:
Decide whether the project needs:
If the project needs insulation, specify the required core material and thickness instead of treating all decorative panels as insulated products.
The fixing method can change depending on whether the panel is installed on brick, concrete, steel structure, or another substrate.
Consider:
A physical sample is strongly recommended before mass production, especially when two colors or patterns must be coordinated.
For international orders, Fuqiang recommends providing application details, drawings, dimensions, quantities, facing material, coating, color, finish, destination, and delivery requirements when requesting a project quotation.
The current product information provides the following reference specification for the brick and stone pattern insulated metal wall panel:
| Specification | Current Reference |
|---|---|
| Effective width | 500mm |
| Thickness | 16 / 20 / 25 / 30mm |
| Core | Rigid PU polyurethane |
| Core density | 40 kg/m³ |
| Facing | Al-Zn coated steel sheet; aluminum option |
| Standard steel thickness | 0.3mm |
| Optional steel thickness | 0.3–0.5mm |
| Surface coating | Weather-resistant fluorocarbon baking paint |
| Surface patterns | Brick and stone patterns, subject to current molds |
| Fire performance | Grade B |
| Warranty | 5 years |
| Customization | Texture, color, length, thickness, profile, accessories and packaging |
The product page also notes that current dimensions and available patterns should be confirmed before ordering, particularly for customized projects.
For distributors and contractors, this specification provides a starting point rather than a substitute for project-specific engineering review.
The product can support a variety of architectural applications.
Wood-grain and stone textures can create a more natural residential appearance.
The factory-finished panel format works well with modular and prefabricated construction where installation efficiency is important.
The panels can refresh an unfinished or outdated façade without requiring conventional masonry finishes.
Brick, stone, and other decorative patterns can create a more distinctive architectural appearance.
Decorative panels can improve the appearance of office sections, entrance areas, and selected exterior walls.
Fuqiang’s existing projects demonstrate these applications. The company has supplied decorative metal wall panels for an Australian outdoor house and warehouse project, a Kyrgyzstan villa, and a Philippines hotel project.
500mm Metal Carved Panels: Exterior Wall Decoration, Insulation and Design Guide
Shandong Fuqiang Environmental Protection Materials Co., Ltd. is a China-based sandwich panel manufacturer providing factory-direct insulated building-envelope solutions for international construction projects.
For decorative wall projects, Fuqiang combines panel manufacturing with project-oriented customization. Current product information supports customization of texture, color, length, thickness, profiles, accessories, packaging, and selected OEM/private-label requirements.
This is useful for B2B buyers because the panel is rarely the only item required on a project.
A complete order may include:
Panel + trims + corners + window details + door details + packaging + technical support
Fuqiang’s current product range covers decorative metal wall panels, PU sandwich panels, rock wool sandwich panels, PU edge-sealed rock wool panels, roof panels, and panel accessories.
For contractors and distributors, the goal is therefore not simply to purchase a decorative board. It is to receive a coordinated wall system that matches the building application.
500mm metal carved panels provide a practical option for projects that need both architectural appearance and efficient wall construction. Their wider format can help create a cleaner wall layout, while decorative textures allow contractors and architects to achieve wood, brick, stone, or other visual effects.
When an insulated configuration is selected, the panel can also combine decorative cladding with a polyurethane insulation core. This makes the system suitable for a range of applications, including villas, residential renovation, prefabricated buildings, hotels, commercial buildings, warehouses, and low-rise projects.
The most important step is to choose the complete system according to the project—not simply the surface pattern.
For a project quotation, provide the wall area, panel width, thickness, preferred texture, color, insulation requirement, substrate, quantity, destination, and drawings or site photos. This gives the manufacturer enough information to recommend the appropriate panel configuration and matching accessories.
500mm refers to the effective panel width. A wider panel can provide greater coverage per piece and may reduce the number of joints across a wall, depending on the project layout.
Yes, selected systems are designed for exterior applications. The correct facing, coating, thickness, fixing method, and accessories should be selected according to the building height, substrate, climate, wind exposure, and local requirements.
Current Fuqiang products include brick, stone, wood-grain, bark, and other decorative textures. Available molds, colors, and finishes should be confirmed with the factory before ordering.
Selected configurations include a rigid polyurethane insulation core. However, insulation performance depends on the complete panel thickness, core, joints, substrate, and installation system.
Yes. Decorative metal panels are suitable for selected villa renovation projects where the existing wall can support the proposed system. Fuqiang has completed a villa exterior decoration project using wood-grain decorative metal wall panels.
Yes. Current product information supports customization of texture, color, thickness, length, profile, accessories, packaging, and selected OEM/private-label requirements.
