August 24, 2026 Shandong Fuqiang Technical & Application Team
Corporate technical and product application guidance | Updated August 24, 2026
Cleanroom panels for hospital projects are modular wall and ceiling components selected to create smooth, maintainable surfaces and coordinated interfaces around doors, glazing, services and functional zones. The panel is only one part of the enclosure: contractors must also verify core, facing, joints, trims, support, fire documentation, cleaning compatibility and future access.
This guide uses Fuqiang’s documented Rizhao Bethune Hospital cleanroom project as application context. The public case describes modular cleanroom wall panels, partitions and specialized doors, but it does not publish room classification, air-change rates, quantified installation savings or project-specific certification numbers. Those details must therefore come from the hospital brief and approved project documents.
Before choosing a panel, map each room’s clinical use, cleanliness requirement, pressure relationship, cleaning regime, humidity, temperature, traffic, impact exposure and access needs. A corridor, preparation room, laboratory support space and controlled treatment area may require different wall interfaces even when their finishes look similar.
The panel schedule should identify the required facing, core, thickness, joint, support and finish by room. It should also state which party coordinates ceilings, floors, doors, glazing, pass boxes, electrical outlets, medical gases, ventilation terminals and equipment supports.
| Specification item | What the contractor should define | Readback evidence |
|---|---|---|
| Panel construction | Facing, core, thickness, width, joint and permitted tolerances | Product data for the exact offered configuration |
| Surface | Finish, cleanability, chemical compatibility and repair method | Approved sample and maintenance instructions |
| Fire performance | Required classification and whether it applies to material, panel or assembly | Applicable report with product and thickness identified |
| Interfaces | Floor cove, ceiling junction, corners, doors, glazing and penetrations | Approved shop drawings and coordinated details |
| Support | Framing, suspension, fasteners, loads and deflection limits | Structural design and installation method |
| Access and change | Removable sections, service access and future modification zones | Access plan, labels and spare-component schedule |
Fuqiang’s published rock-wool insulated wall-panel range lists effective width of 950 mm and thickness options of 50, 75, 100, 150 and 200 mm, with thermal conductivity around 0.043 W/(m·K) and sound insulation of at least 30 dB. The website describes A-grade non-combustible performance but does not publish the report number in the source library, so the supporting document must be requested before using that classification in a hospital submittal.
Those dimensions are a product reference, not an automatic hospital specification. The final selection must reconcile room performance, fire strategy, acoustic separation, service integration, support spans, door frames and the ceiling system.

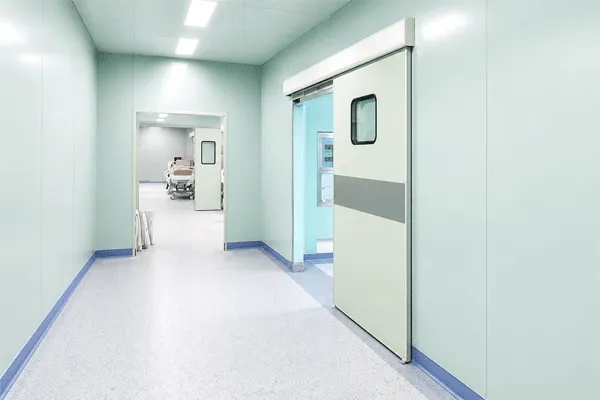

Fuqiang’s documented Rizhao Bethune Hospital cleanroom project addressed concerns associated with conventional wet construction, including uneven finishes, longer processes, difficult maintenance and contamination-management concerns. The stated solution combined modular cleanroom wall panels, partition systems and specialized doors for smooth surfaces, functional separation, installation coordination and future maintenance.
The published outcome reports cleaner modular interior construction with maintainable surfaces and easier future modification. It does not quantify time savings or confirm a particular cleanliness class. A contractor should use the case as evidence of application experience, then verify the current project’s own drawings, specifications, tests and commissioning criteria.
Modular panels can provide repeatable surfaces, dry installation and coordinated openings. Damaged or changed areas may be easier to plan for when panel modules, trims and spare components are recorded at handover. Compared with conventional wet finishes, modular construction can also reduce the number of site-applied layers.
The tradeoff is that late service changes can disrupt panel modules and sealed interfaces. Door frames, glazing and ceiling loads need early coordination. A smooth panel face cannot compensate for an unsuitable core, missing fire documentation, poorly supported ceiling or unsealed penetration.
A color and finish sample does not define a hospital cleanroom enclosure. The specification must cover core, thickness, joints, trims, support, doors, glazing, coves, penetrations, sealants, cleaning compatibility and documentation. Omitting these items shifts design decisions to installation crews and makes later verification harder.
The answer depends on the room use, fire strategy, acoustic needs, cleaning regime, service loads and approved enclosure design. Provide the room schedule and project specification before selecting the core, facing and thickness.
Yes, when the project fire strategy or local code requires it. Request the applicable report for the exact panel construction and confirm whether the classification covers the core material, finished panel or complete assembly.
Doors, glazing and mounted equipment need defined framing or reinforcement. Do not assume the panel skin alone carries these loads; show weights, fixing points and support details on coordinated drawings.
Locate penetrations before production, use coordinated sleeves, trims and seals, and preserve access where valves, dampers or connections require service. Record concealed work before closing the wall or ceiling.
Send room layouts, elevations, reflected ceiling plans, door and glazing schedules, service overlays, required classifications, cleaning requirements, quantities, delivery location and project program. Ask the supplier to identify inclusions, exclusions and required supporting documents.
Review Fuqiang’s cleanroom application page, examine the documented hospital project, and use the contact page to send coordinated drawings and performance requirements. The review should resolve panel construction, interfaces, supports and evidence before manufacture.
Shandong Fuqiang Technical & Application Team supports product configuration, production coordination and application review for insulated sandwich panels, cleanroom partitions, roof panels and customized components. Individual team-member credentials are not publicly disclosed.
The answer depends on the room use, fire strategy, acoustic needs, cleaning regime, service loads and approved enclosure design. Provide the room schedule and project specification before selecting the core, facing and thickness.
Yes, when the project fire strategy or local code requires it. Request the applicable report for the exact panel construction and confirm whether the classification covers the core material, finished panel or complete assembly.
Doors, glazing and mounted equipment need defined framing or reinforcement. Do not assume the panel skin alone carries these loads; show weights, fixing points and support details on coordinated drawings.
Locate penetrations before production, use coordinated sleeves, trims and seals, and preserve access where valves, dampers or connections require service. Record concealed work before closing the wall or ceiling.
Send room layouts, elevations, reflected ceiling plans, door and glazing schedules, service overlays, required classifications, cleaning requirements, quantities, delivery location and project program. Ask the supplier to identify inclusions, exclusions and required supporting documents.
